Baja Designs S8 Behind Grill Kit -10in Clear D/C Ford F150 Raptor / Raptor R (2021+)
  • Baja Designs S8 Behind Grill Kit -10in Clear D/C Ford F150 Raptor / Raptor R (2021+)
  • Baja Designs S8 Behind Grill Kit -10in Clear D/C Ford F150 Raptor / Raptor R (2021+)
  • Baja Designs S8 Behind Grill Kit -10in Clear D/C Ford F150 Raptor / Raptor R (2021+)
  • Baja Designs S8 Behind Grill Kit -10in Clear D/C Ford F150 Raptor / Raptor R (2021+)
  • Baja Designs S8 Behind Grill Kit -10in Clear D/C Ford F150 Raptor / Raptor R (2021+)
  • Baja Designs S8 Behind Grill Kit -10in Clear D/C Ford F150 Raptor / Raptor R (2021+)
Baja Designs S8 Behind Grill Kit -10in Clear D/C Ford F150 Raptor / Raptor R (2021+)
$0.00

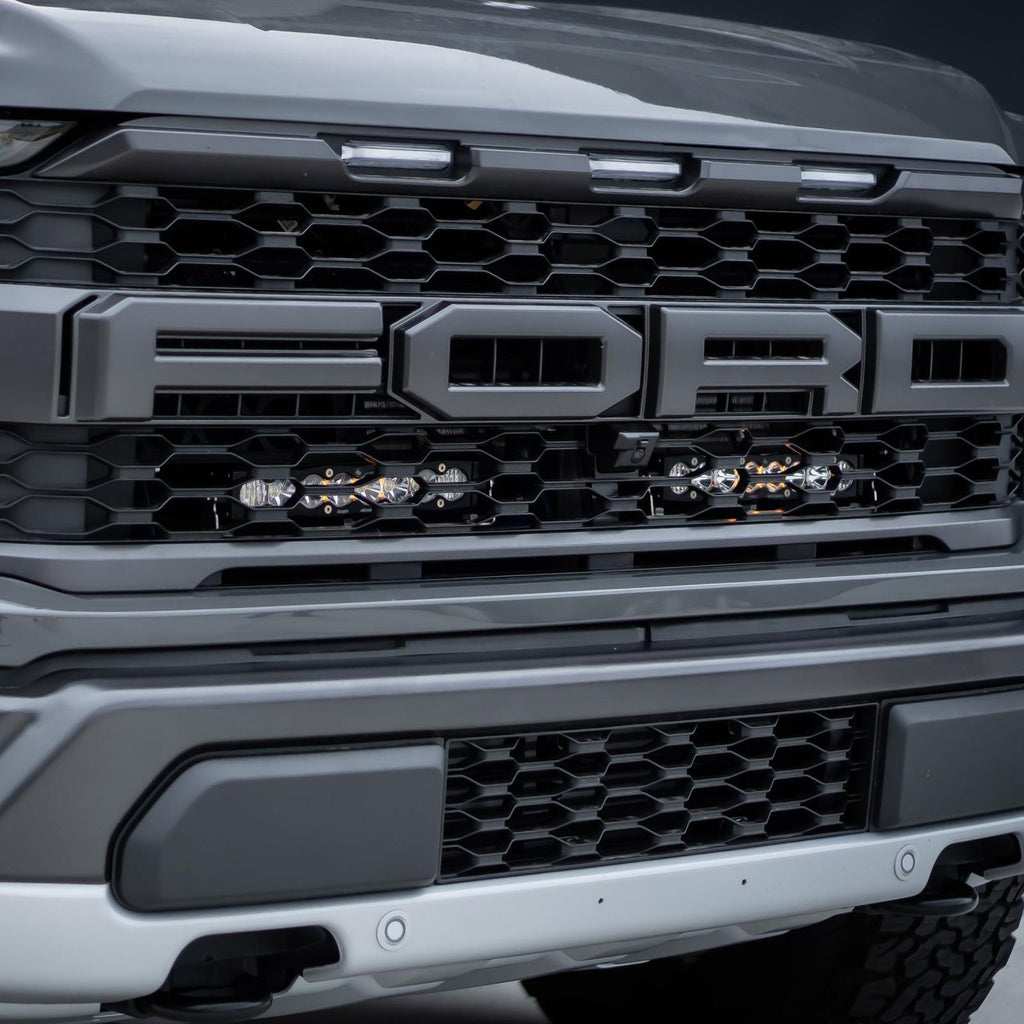

The Baja Designs S8 Dual Behind-the-Grille Light Bar Kit gives the Gen 3 Ford F-150 Raptor a major increase in forward lighting without covering up the truck’s factory styling. Two 10-inch S8 LED light bars mount discreetly behind the grille, keeping the installation clean while producing a combined 12,648 raw lumens for significantly better visibility after dark.

Driving/Combo optics provide both long-distance illumination and useful light closer to the truck, making this setup well suited for higher-speed desert driving, wooded trails and nighttime off-road use. Each S8 also features an amber backlight that complements the Raptor’s factory marker lighting and gives the front end a distinctive appearance when the primary lights are not needed.

Available with clear or Baja Amber primary lenses, the kit includes vehicle-specific brackets and an upfitter harness that integrates the lights with the Raptor’s factory auxiliary switches. It is an excellent choice for owners who need substantially more usable light without adding an exposed light bar to the bumper or roof.

Fitment Notes

  • Fits 2021–2026 Ford F-150 Raptor

  • Fits 2024–2026 Ford F-150 Raptor 37

  • Fits 2024–2026 Ford F-150 Raptor R

  • Mounts behind the factory grille using vehicle-specific brackets

  • Designed to integrate with the factory Ford upfitter switches

  • Will not work with adaptive cruise control relocation kits

  • Available with Clear or Baja Amber Driving/Combo primary lenses

  • Intended as auxiliary lighting; use must comply with applicable on-road lighting regulations

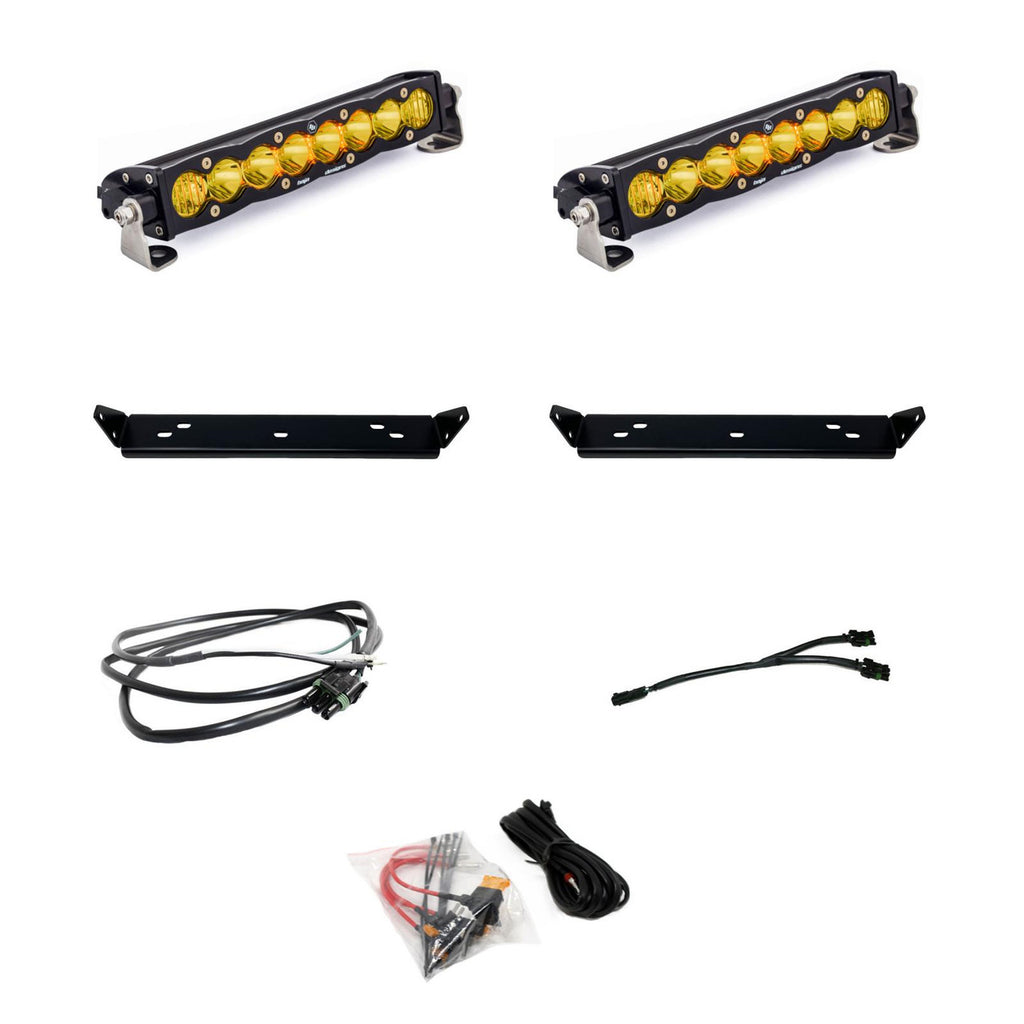

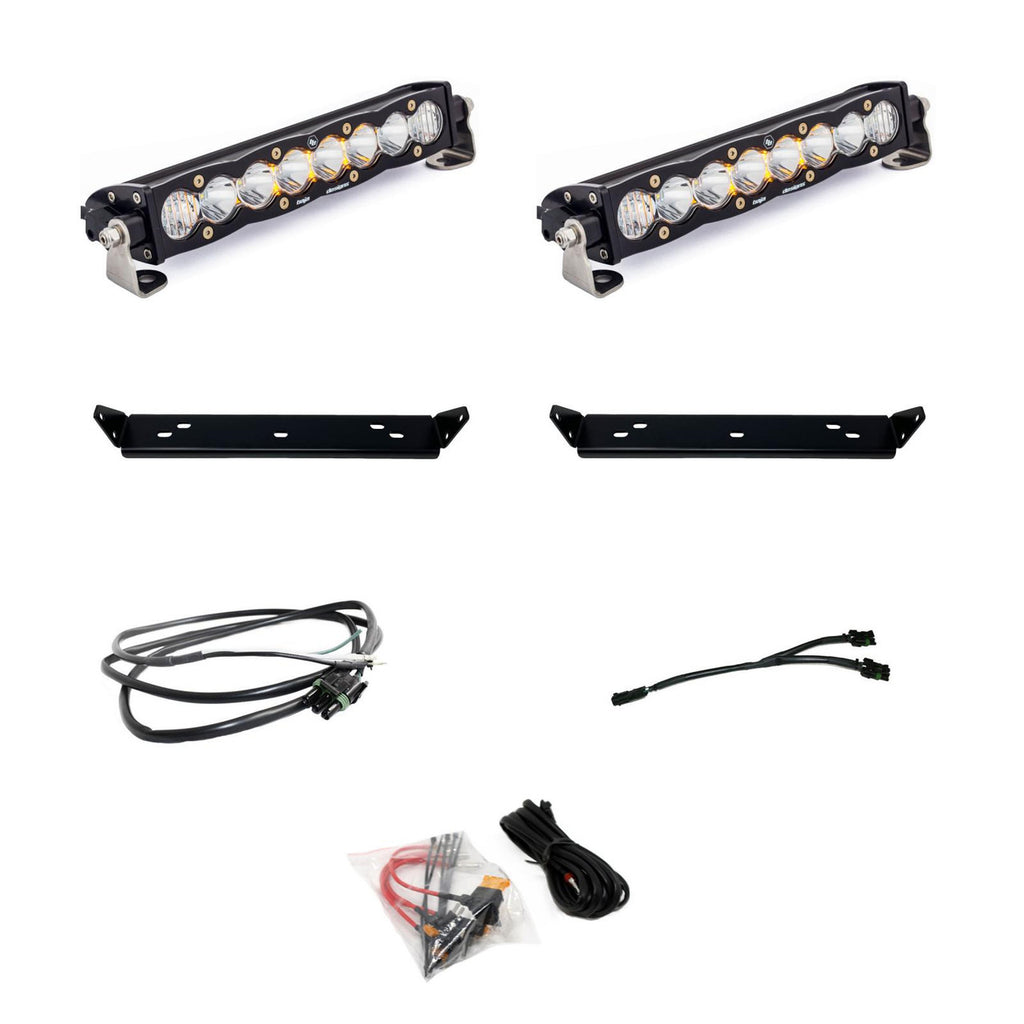

Included

  • Two Baja Designs S8 10-inch LED light bars

  • Two vehicle-specific behind-the-grille mounting brackets

  • One splitter wiring harness

  • One upfitter wiring harness

  • One S8 backlight wiring harness

  • All necessary mounting hardware

Product Specs

  • Light Model: Baja Designs S8

  • Light Bar Length: 10 inches each

  • Light Output: 6,324 raw lumens per light

  • Combined Output: 12,648 raw lumens

  • Power Consumption: 57.96 watts per light

  • Current Draw: 4.2 amps per light

  • Beam Pattern: Driving/Combo

  • Primary Lens Options: Clear or Baja Amber

  • Backlight: Amber

  • Color Temperature: 5000K on clear primary beam

  • Dimensions: Approximately 10 x 3 x 1.6 inches per light

  • Weight: Approximately 2.4 pounds per light

  • Housing Material: Aircraft-grade aluminum with Mil-Spec hard-anodized finish

  • Lens Material: Hard-coated polycarbonate

  • Bezel Material: Billet-machined aluminum

  • Water Resistance: IP69K rated

  • Impact Resistance: IK10 compliant

  • Durability Testing: Exceeds MIL-STD810G standards

  • Rated LED Life: Approximately 49,930 hours

  • Warranty: Baja Designs Limited Lifetime Warranty

Product Features

  • Produces 12,648 combined raw lumens for a major improvement in nighttime trail visibility

  • Hidden behind-the-grille installation maintains the Raptor’s clean factory appearance

  • Driving/Combo optics provide both long-range visibility and useful near-field illumination

  • Integrated amber backlighting complements the Raptor’s factory marker lights

  • Factory upfitter-switch integration provides clean, convenient control from inside the truck

  • IP69K waterproof and IK10 impact-resistant construction is engineered for demanding off-road environments
